Fluorocarbon paint Integrated boards: Balancing Aesthetics and Durability in Modern Construction

The building envelope has evolved from a simple structural barrier to a complex, high-performance system. Among the innovations driving this shift, the fluorocarbon paint integrated board—a prefabricated panel combining insulation and a high-durability decorative finish—has emerged as a critical solution for demanding architectural projects. Its growing adoption reflects a broader industry trend: the search for materials that deliver long-term performance, reduce on-site labor, and withstand increasingly severe environmental conditions.

Material Composition and Structural Logic

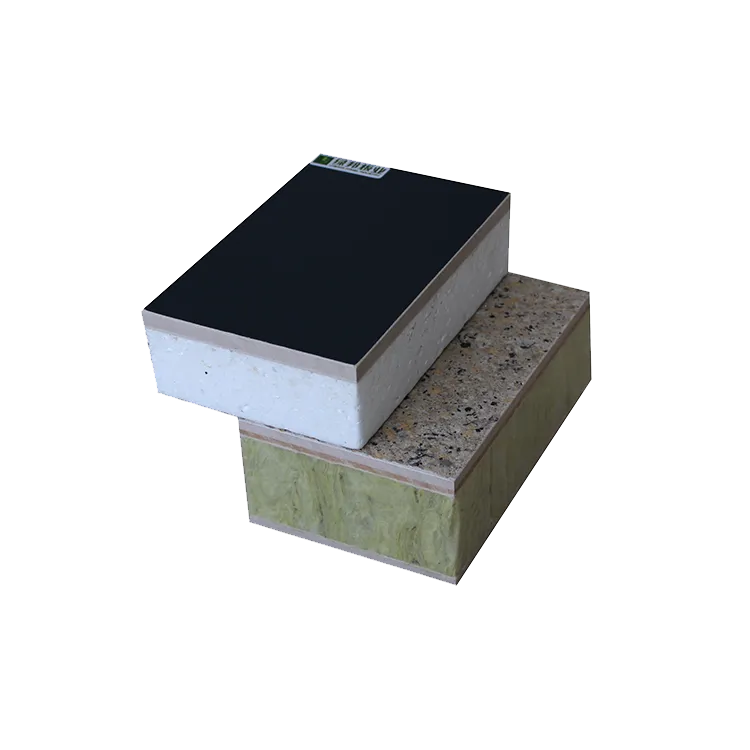

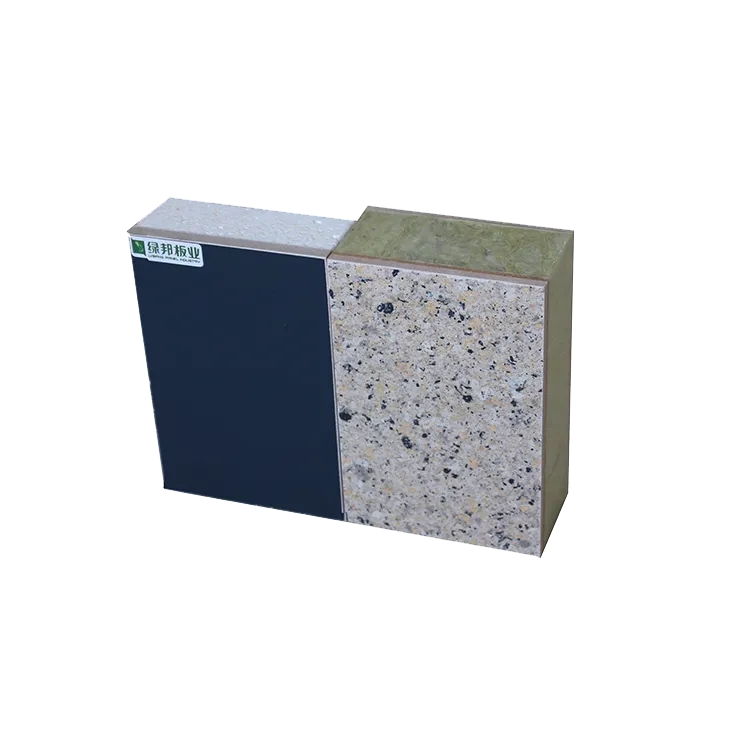

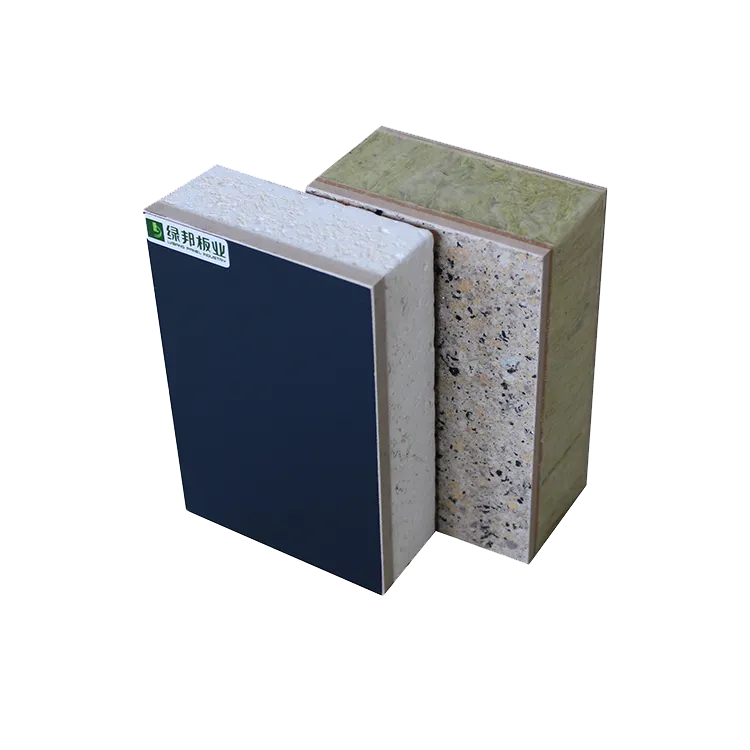

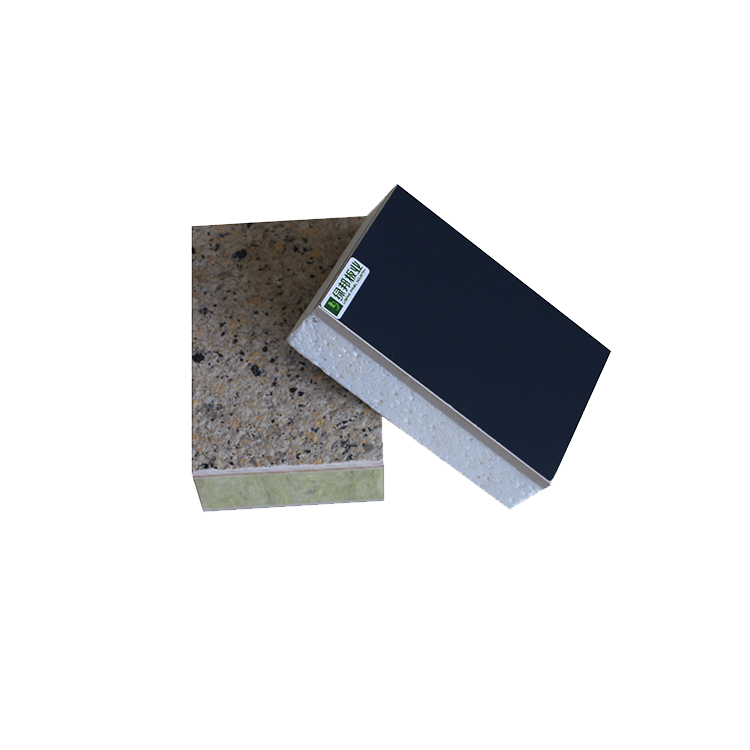

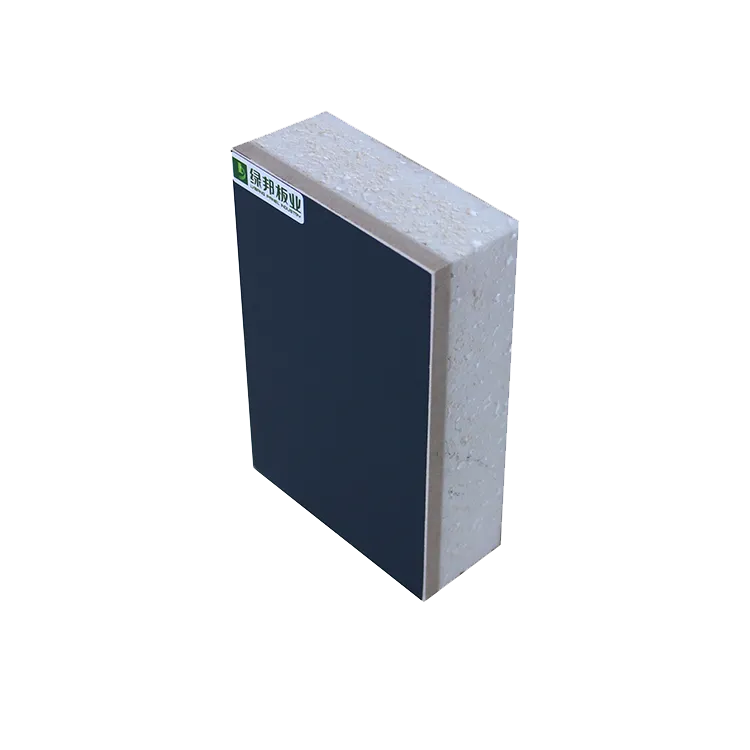

The value proposition of these boards lies in their multi-layered structure. The outer layer is a fluorocarbon coating, typically based on polyvinylidene fluoride (PVDF) or FEVE resins . The chemistry is critical; the high-energy carbon-fluorine bonds create a surface with exceptional resistance to UV radiation, chemical corrosion, and moisture ingress . This metallurgical-grade protection is typically applied to a decorative panel, often a fiber-reinforced cement or inorganic resin board, which provides a stable substrate and a degree of impact resistance .

This decorative layer is then bonded to an insulation core—commonly Polyurethane, extruded polystyrene, or phenolic foam—creating a single, factory-finished component . This combination of a durable, low-maintenance surface with high-performance insulation directly addresses two key building performance requirements in one product.

The Shift to Performance-Driven Procurement

The market for these materials is being reshaped by a move away from purely aesthetic considerations toward a focus on total lifecycle cost and functional resilience. In sectors like commercial high-rises, airports, and coastal infrastructure, the 25-year design life often cited for these panels is a major driver . This longevity is achieved through rigorous manufacturing controls; processes now often involve multiple primer and topcoat layers cured through precise ultraviolet or thermal cycles to ensure consistent film thickness and adhesion .

However, achieving this promised performance is not guaranteed by the coating alone. The most critical factor for quality is the interface between layers. Industry practice shows that improper handling of the substrate surface—inadequate polishing, poor waterproofing treatment, or contamination—will lead to premature coating failure, regardless of the paint's quality . Similarly, the adhesive layer bonding the decorative face to the insulation must maintain its integrity through thermal cycling and moisture exposure; delamination remains a primary concern in lower-quality products.

Industry Challenges and Application Insight

Despite its advantages, the industry grapples with a fragmented supply chain and inconsistent quality standards. One common pain point is the mismatch in service life between the fluorocarbon topcoat and the insulation material. While the coating may be rated for 25 years, the insulation core or adhesive may degrade sooner, leading to system failure. This makes supplier selection paramount. A reliable supplier must demonstrate not only a premium coating formulation but also a tightly controlled, fully automated process from substrate preparation to final curing . In practice, high-quality boards are also used in interior spaces with specific requirements, such as subways and tunnels, where their fire resistance and cleanability are valued .

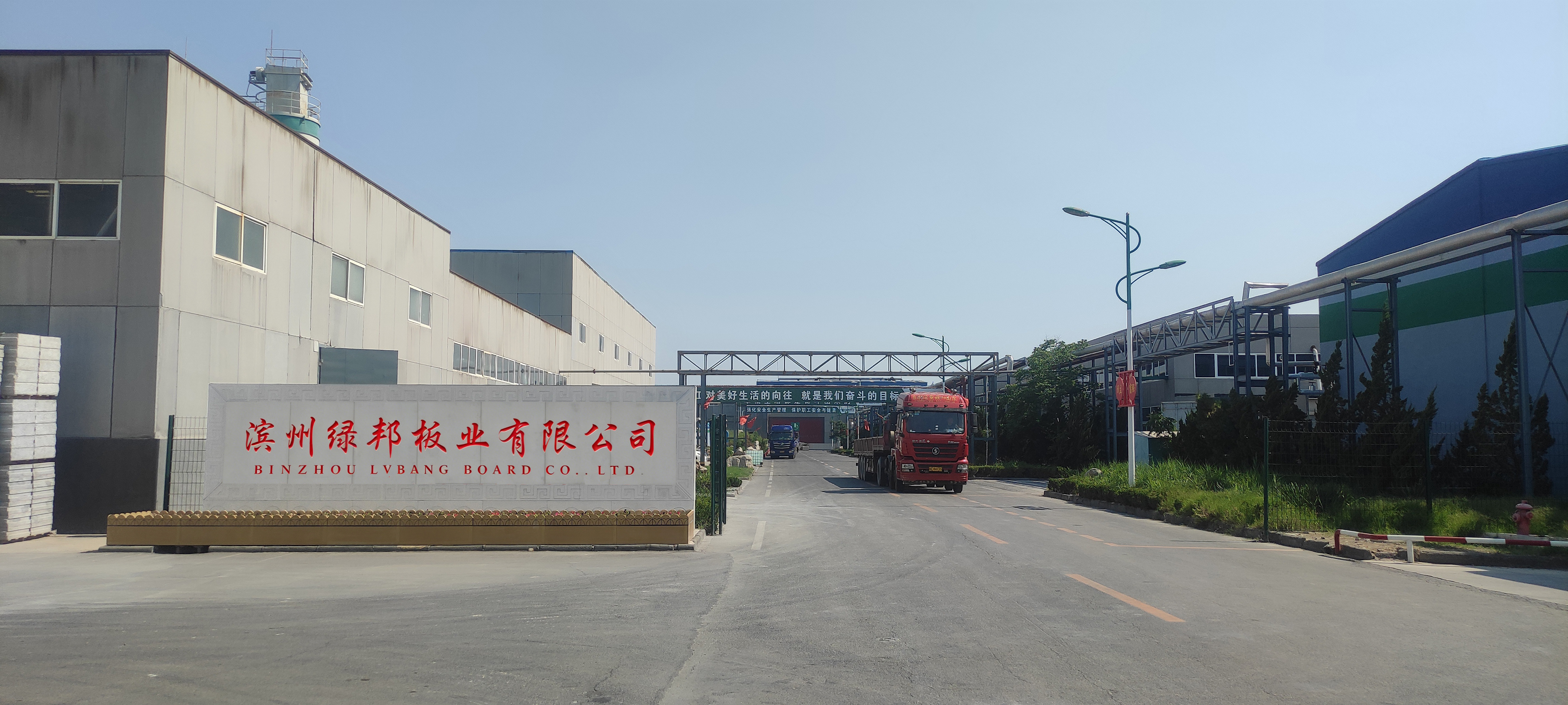

Binzhou Lübang Board Industry Co., Ltd., a subsidiary of Guochang Group, is situated in the Binzhou Industrial Park in Shandong Province, the central city of the Yellow River Delta High-Efficiency Ecological Economic Zone. The company originated from Qinglongshan Cement, founded in 1958, and has grown and expanded continuously through over 60 years of development. With an annual sales revenue of RMB 3 billion, the Group is a highly competitive building materials manufacturer in the Yellow River Delta region.

Recognized for its excellent products and premium services, the company enjoys widespread praise from customers and sustains a high market share nationwide. It has gained full recognition and acclaim from most domestic architectural design institutes, engineering companies, merchants and end users. Lübang’s key project cases cover all regions across China.

Established in February 2003, the company has a registered capital of RMB 50 million, a total investment of RMB 210 million, and a site area of 87,000 square meters. Its product portfolio includes non-asbestos cement flat sheets, Calcium Silicate Boards, Meijie Boards (eco-friendly inorganic decorative panels), integrated thermal insulation and decoration panels, lightweight solid composite wall panels, diatomite ecological functional panels, textured fair-faced panels, solid-color integral panels, carved decorative panels, perforated sound-absorbing panels, fireproof artistic Ceiling panels, as well as 3D/5D trendy decorative panels and other series.

The company boasts an annual production capacity of over 20 million square meters for calcium silicate boards and cement flat sheets, 1.5 million square meters for eco-friendly decorative panels, and 2 million square meters for composite wall panels, ranking it among the leading large-scale manufacturers of new-type building panels in China.

It has passed the certification ofISO9001:2015 Quality Management System, ISO14001:2015 Environmental Management System and ISO45001:2018 Occupational Health and Safety Management System, and obtained theThree-Star China Green Building Product Certification. Additionally, the company has been awarded numerous honors, including "China Green Environmental Protection Product", "Shandong Famous Brand Product", "Top 10 Enterprises of Calcium Silicate & Fiber cement board Industry in China", and "Council Member Unit of the Calcium Silicate and Cement Board Branch of China Concrete and Cement Products Association". These qualifications and honors fully testify to the trust of consumers and the recognition of national authoritative institutions.
